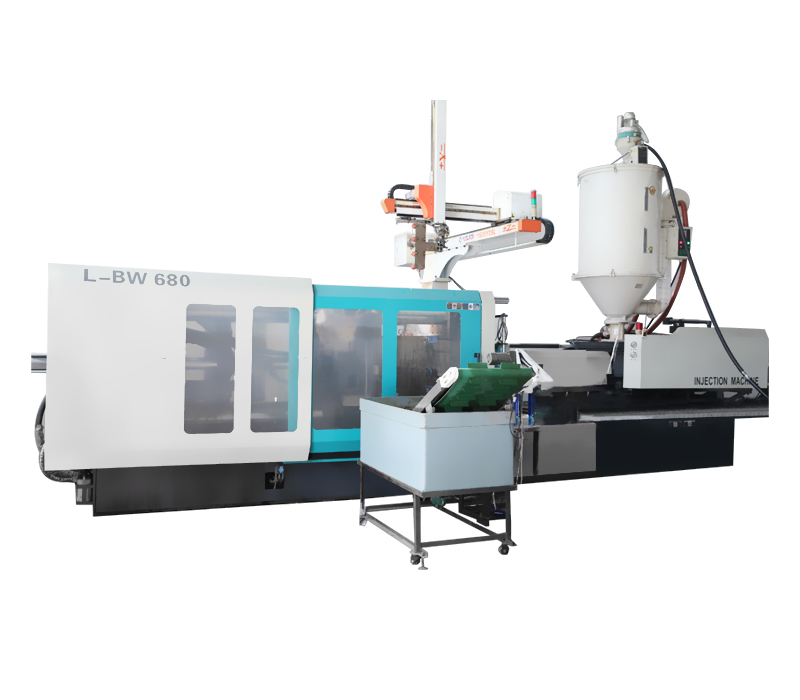

L-BW680 Plastic Injection Machine

SYSTEM DESCRIPTION:

Description：

◎ Designed according to CE standard.

◎ Techmation PLC，Japan Yuken hydraulic system.
◎ Applicable for all thermoplastic material such as PP，PE，PET，PC，PS，PVC，ABS，SAN etc，and it is used to produce preforms，caps，handles，containers，daily necessity，hardware/kitchenware as well as other plastics products.

Products Description Message

MODEL		L-BW50			L-BW80			L-BW110			L-BW120			L-BW130			L-BW170			L-BW220			L-BW280			L-BW380			L-BW480			L-BW580			L-BW700			L-BW800
SCREW CODE	-	A	B	C	A	B	C	A	B	C	A	B	C	A	B	C	A	6	C	A	B	C	A	B	C	A	B	C	A	B	C	A	B	C	A	B	C	A	B	C
SCREW DIAMETER	mm	25	28	30	32	35	38	38	40	42	38	40	42	40	42	45	42	45	50	48	52	55	55	60	65	65	70	75	70	75	80	75	80	85	85	90	100	90	100	110
INJECTION PRESSURE	Mpa	184	168	147	186	170	144	188	168	152	187	170	154	190	174	151	225	188	158	211	180	160.8	216	182	155	218	185	156	212	184	143	210	185	164	219	195	158	225	182	150
SHOT WEIGHT(PS)	g	45	53	61	90	100	130	132	158	175	170	183	208	200	224	257	287	320	407	432	510	570	654	779	890	966	1120	1286	1280	1469	1887	1571	1778	2018	2174	2438	3010	2702	3336	4037
SCREW L:D	-	22:1	20:1	18:1	21.6:1	20.5:1	19.3:1	22:1	20:1	18:1	22:1	20:1	18:1	22.1:1	20:1	18:1	22:1	20:1	18:1	22:1	20:1	18:1	22:1	20:1	18.4:1	21.6:1	20:1	19:1	23.5:1	22:1	19.4:1	22:1	20.5:1	19.3:1	21:1	20:1	18:1	22:1	20:1	18:1
SCREW STROKE	mm	102			135			150			170			191			245			281			322			315			360			385			415			460
SCREW SPEED	r.p.m	0-320			0-200			5-180			10-170			5-170			0-170			0-170			0-160			5-200			5-150			5-130			5-120			5-130
INJECTION RATE	cm'/sec	24.5	32.4	40	78	90	100	116	120	122	118	122	124	119	123	125	120	125	130	136	168	203	207	246	270	275	318	365	323	371	365	351	400	451	486	545	673	540	667	807
PLASTICIZING CAPACITY	g/sec	4	4.5	5.2	9.8	14	18	19.3	20.2	22.3	19.2	20.1	22	20	21	22.5	20	22.7	23	20	25	30	30	36	40	45	52	60	49	58	60	59	68	86	64	72	89	65	80	95.8
TYPE OF CLAMPING UNITS	-	Double Toggle			Double Toggle			Double Toggle			Double Toggle			Double Toggle			Double Toggle			Double Toggle			Double Toggle			Double Toggle			Double Toggle			Double Toggle			Double Toggle			Double Toggle
CLAMPING FORCE	tons	50			80			110			120			130			170			220			280			380			480			580			700			800
MOULD CLAMPING STROKE	mm	255			300			320			375			375			435			470			550			680			750			850			900			1000
MAX DAYLIGHT OPENING	mm	605			650			700			775			805			935			1050			1170			1400			1550			1700			1900			2000
MOULD THICKNESS(MIN-MAX)	mm	150-350			130-350			150-380			150-400			150-430			180-500			200-500			230-620			250-720			300-800			350-850			400-900			450-1000
SPACE BETWEEN TIE BAR(W x H)	mm	280x260			350x350			385x350			375x415			420x420			460x460			510x510			580x580			680x680			810x785			860x860			920x920			1000x1000
HYDRAULIC EJECTION FORCE	tons	2.2			2.7			3.0			3.8			3.8			4.5			7.0			7.0			11			15			16.6			18			20
HYDRAULIC EJECTION STROKE	mm	65			100			80			110			115			130			135			145			200			200			250			285			260
SYSTEM PRESSURE	Mpa	14			14			16			16			16			16			16			16			16			17.5			16			16			16
PUMP DRIVING MOTOR	Kw	5.5			9			11			13			13			15			18.5			22			37			18.5+30			18.5+37			37+37			37+45
HEATER CAPACITY	Kw	2.3			6			6.3			6.3			6.3			7.5			11			14			19			24.7			28			30			36
TEMPERATURE CONTROL ZONES	-	3+1			3+1			3+1			3+1			3+1			3+1			4+1			4+1			5+1			6+1			6+1			6+1			7+1
TANK CAPACITY	L	160			180			180			220			220			350			400			500			1000			1050			1300			1300			1800
MACHINE DIMENSIONS(LxW xH)	mm	3600x1100x1700			3800x1200x1700			3850x1260x1780			3940x1280x1795			4150x1290x1800			4920x1290x1810			5400x1550x1950			5800x1650x2050			7180x1950x2600			8600x2200x2400			9400x2300x2800			9700x2800x3290			10300x2700x3290
MACHINE WEIGHT	tons	2.8			3			3.5			4.2			4.5			5.2			7.5			9			11.5			18			28			35			48
When PC(polycarbonate),PVC and other plastic material used for engineering are planned for molding.it is necessary to inform us for special designation. When PC(polycarbonate).PVC and other plastic material used for engineering are planned for molding.it is necessary to inform us for special designation.
