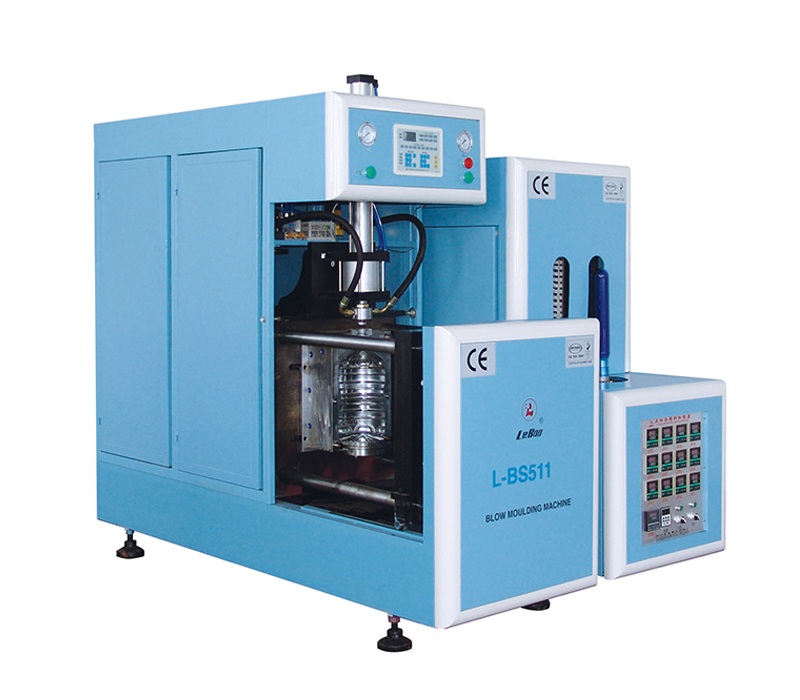

L-BS511 Five Gallon Blow Moulding Machine

SYSTEM DESCRIPTION:

FEATURES:
◎Designed according to CE standard.
◎Bothfit PLC, Germany FESTO solenoids.
◎The main structure is welded by Q235B200*70 channel steel and heater is made of 40*40*1.5 square tube. The surface is treated with paint ejection.
◎Mould clamping system is processed precisely to ensure the stability.

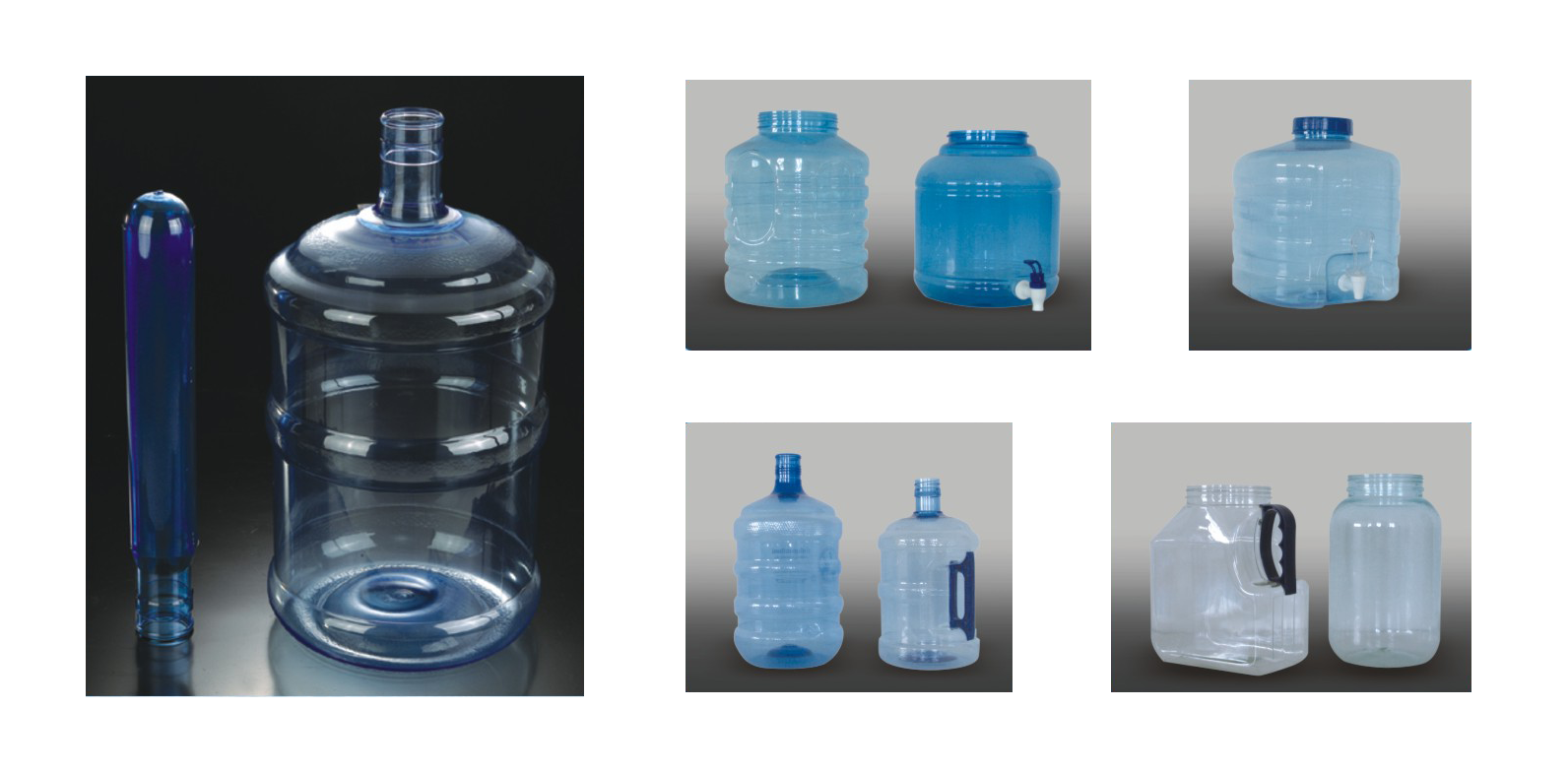

◎Applicable for PET bottles production from6L to 25L.
◎Adopted inside heating system to make preform being heated evenly, the bottle will be clear and shinning accordingly, and the yield will be higher.

Products Description Message

L-BS511 (five gallons) type		Main Technical Data
Clamping force		Force of closing mould		220KN
Hourly production capacity		Productive capacity		100PCS
Maximum product capacity		Max volume of product		25L
Host operating pressure		Working Air Pressur of Mainframe		1.0Mpa
Blowing air pressure		Blowing Air Pressure		2.0-3.0Mpa
Operating Voltage		Voltage(3-phase1-phase)		380/240/110V
heating power		Heating power		15KW
Maximum stretching stroke		Max Stretch Length		550mm
Mobile template itinerary		Max mould thickness		350mm
Allowable mold thickness		Allowed Mould thickness		280-400mm
Allow mold width		Allowed Mould Width		450mm
Host size (length × width × height)		Size of Main frame (L.W.H)		2300 x 740 x 2000mm
Infrared heating box size		Size of Oven(L.W.H.)		2660 x 650 x 1660mm
Total Weight		Weight		11200+620KG

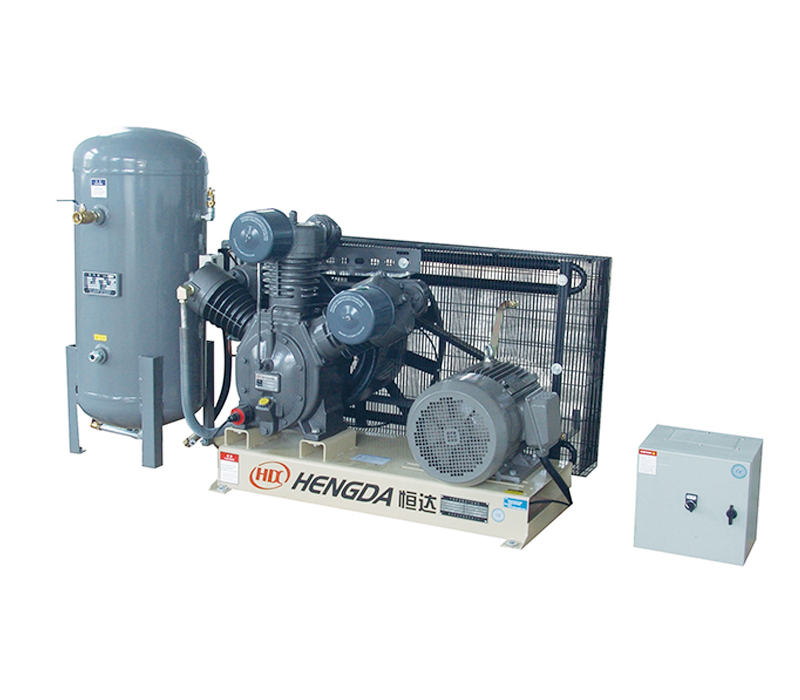

Auxiliary	High pressure compresso	M³ / Mpa	≥1.2 / 3.0 x 1set	Power	11KW
	Low pressure compressor	M³ / Mpa	≥1.0 / 1.0 x 1set	Power	7.5KW

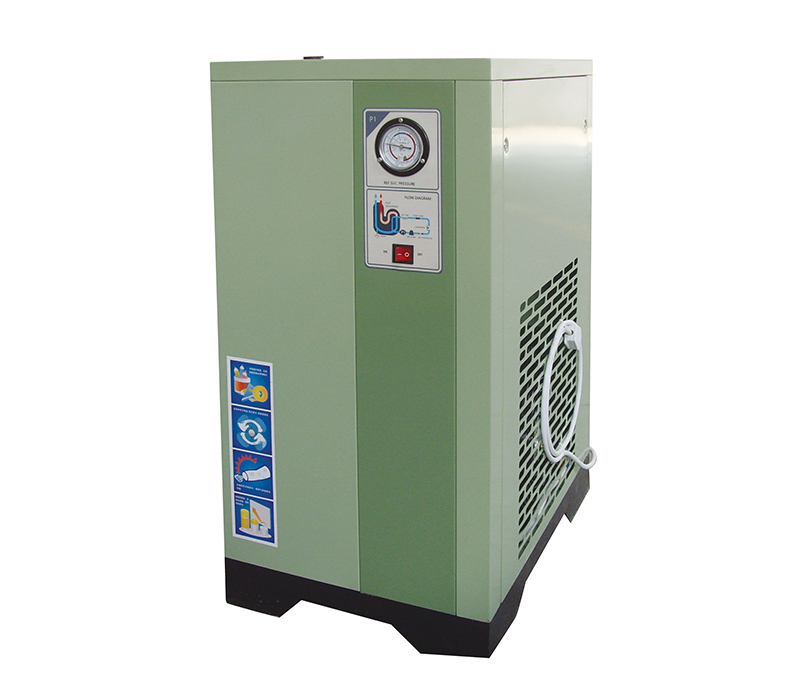

	Air cooling dryer	M³ / Mpa	≥ 1.0 / 3.0 x 1set	Power	1.5KW

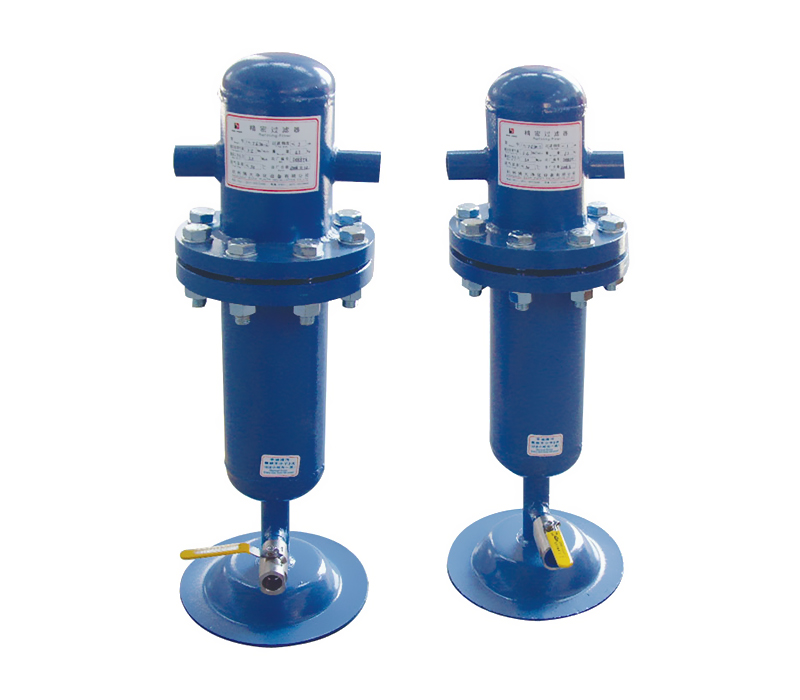

	Precision air filters	M³ / Mpa	≥1.0 / 3.0 x 2pcs
