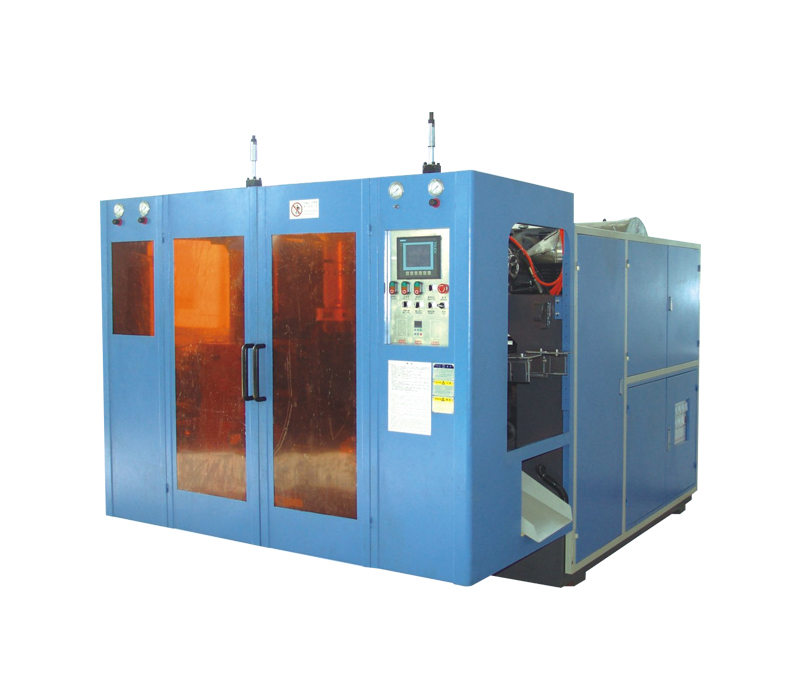

L-BS516 automatic extrusion moulding machine

Model

45

Single colour

55-2/2

Single

colour

40-1/2

Double

layers

40-25-1/2

Liquid level line

65-2/5

Single

colour

65-3/5

Single

colour

6540-1/5

Double

layer

75-1/10

Single

colour

75-2/10

Single

cobur

75-25-1/ 10 Liquid level

55-25-1/

10 Double layer with Liquid level

85-1/25

Single

colour

90-1/50

Single

colour

Max. container capacity

1

2

2

2

5

5

5

10

10

10

10

25

50

material

PP、PE 、PS、PC

PP、PE 、PS

PE

PE

PP、PE 、PS

PP、PE、PS

PP、PE、PS

PP、PE、PS

PP、、PE、PS

PE

PE

PE

PE

Number of die

2

2

1

1

2

3

1

1

2

1

1

1

1

Central distance(mm)

80

85

/

/

120

75

75

/

150

/

70、75、150

/

/

NO.of station

2

2

2

2

2

2

2

2

2

2

2

1

1

Screw diameter(mm)

45

55

55/40

55/40/25

65

65

65

75

75

75/25

75/55/25

85

90

Screw L/D ratio(L/D)

21

23

23/24

23/24/22

24

24

24

24

24

24/18

24/25/18

24

23

Screw rotating speed(RPM)

20-60

20-60

20-60

20-60/20-

40/20-25

20-60

20-60

20-60

20-70

20-70

20-50

20-40/2-15

20-70

20-60

Plasticising capacity(Kg/H)

25

32

32/10

32/10/1.5

42

42

42

90

90

90/1.5

65/25/1.5

80

100

Extruder driving power(KW)

7.5

11

11/4

11/5.5/2.2

15

15

15

22

22

22/2.2

19/11/2.2

30

55

Oil pump motor power(KW)

5.5

5.5

5.5

5.5

5.5

5.5

5.5

7.5

7.5

7..5

7.5

15

30

Heating zone

5

8

9

10

8

10

12

6

9

7

8

6

6

Heating power(KW)

8

9.5

15

19

14

12

13

23

23

25

29

35

55

Plate size(LxW)

310x280

385x340

450x420

700x600

800x900

Mold thickness(mm)

130

450

230

220

600

Clamping force(KN)

30

30

30

30

50

50

50

80

80

80

80

170

200

Gross weight(Kg)

2550

2550

2900

2900

4200

4200

4000

5500

5500

5500

5600

5300

1300

Machine size(mm)

2700x

1800x2100

2780x2000x2100

3200x2000x2500

3600x2100x2700

3600x

2100x2600

3600x

2100x2600

3800x

2200x2800

5700x

3600x4300
