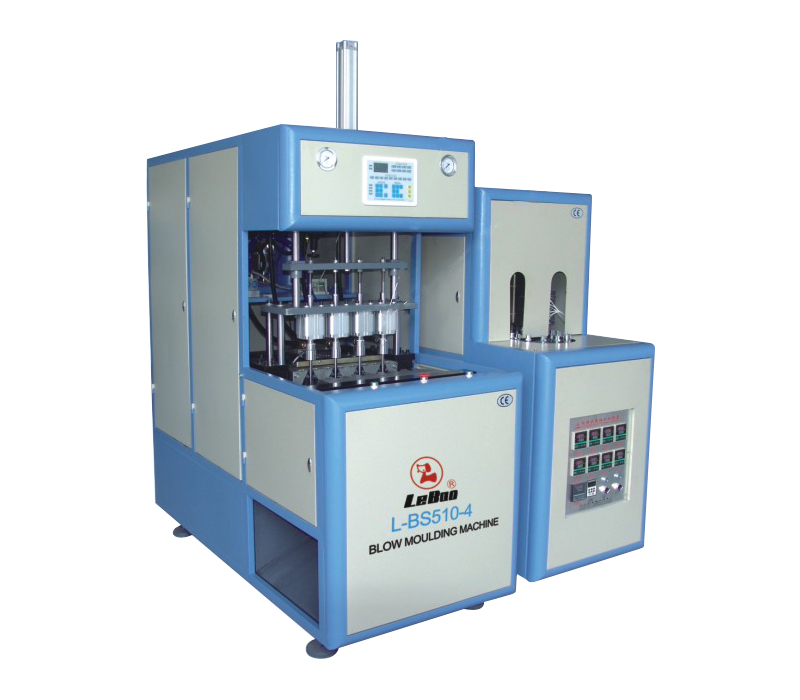

L-BS510-4 4-cavity Semi-automatic Blow Moulding Machine

SYSTEM DESCRIPTION:

FEATURES:

L-BS510-4 4-cavity Semi-automatic Blow Moulding Machine is suitable to produce different shapes of PET/PC/PP bottles. It can blow from 100ml to 1500ml bottles and is widely used to produce mineral water, carbonated drink, juice, medicine, cosmetic and oil bottles etc.

◎ The machine adopts revolving infrared pre-heat system. It ensures PET preforms be heated evenly.

◎ The machine uses mechanical-double-arm mould clamping which ensures the mould will be closed tightly even under high pressure and high temperature.

◎ The air system consists of two parts: pneumatic action part and bottle blow part to meet the different pressure requirements for the action and blowing. It can provide sufficient and steady high pressure for blowing large irregular shape bottles.
◎ The machine is also equipped with silencer and oiling system to lubricate the mechanical parts of the machine.
◎ The machine can be operated in the step-by-step mode and the semi-auto mode

◎ Wide-mouth and hot-filling bottles can also be made.
◎ 3 and 4-cavity stretch blowing machines are with automatic de-moulding system.

Products Description Message

TYPE	ITEM	MEASUREMENT	L-BS510-4-N/STANDARD	L-BS510-4/STANDARD
END PRODUCT	Material		PET / PP / PE / PC	PET / PP / PE / PC
	Volume	L	0.1-1.5(4-cavity)	0.1-1.5(4-cavity)
	Theoretical output	purchase / h	1800-2200	1800-2200
MOULD PLATE	Max. length	mm	340	340
	Max. diameter	mm	100	100
	Max.mould plate dimension(L X H)	mm	500X380	500X380
	Max.mould thickness	mm	110-220	110-220
	Clampinq force	KN	180	180
	Mould opening stroke(Adjustable)	mm	200	200

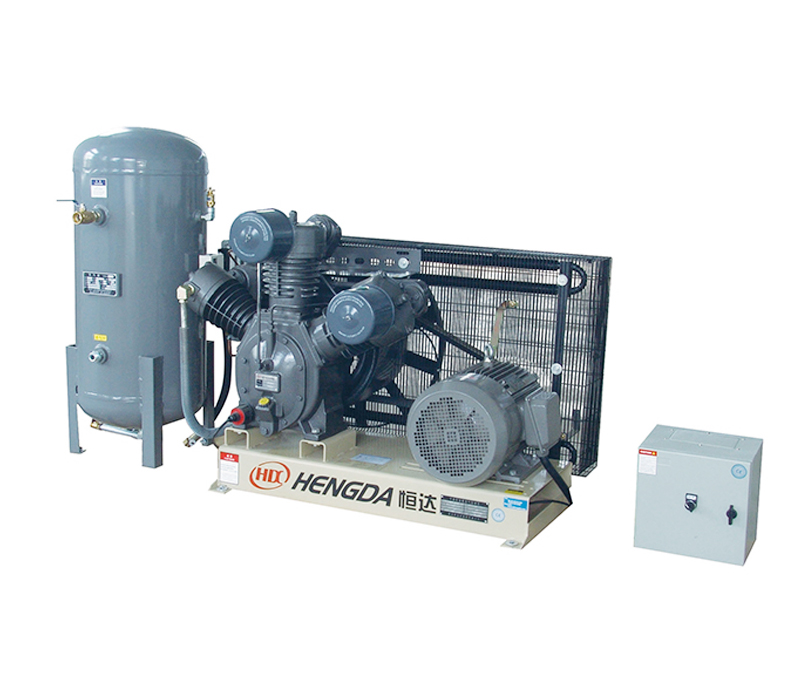

AUXILIARY	High pressure compressor	M³ / Mpa	≥1.2 / 3.0 x 1set	≥1.2 / 3.0 x 1set

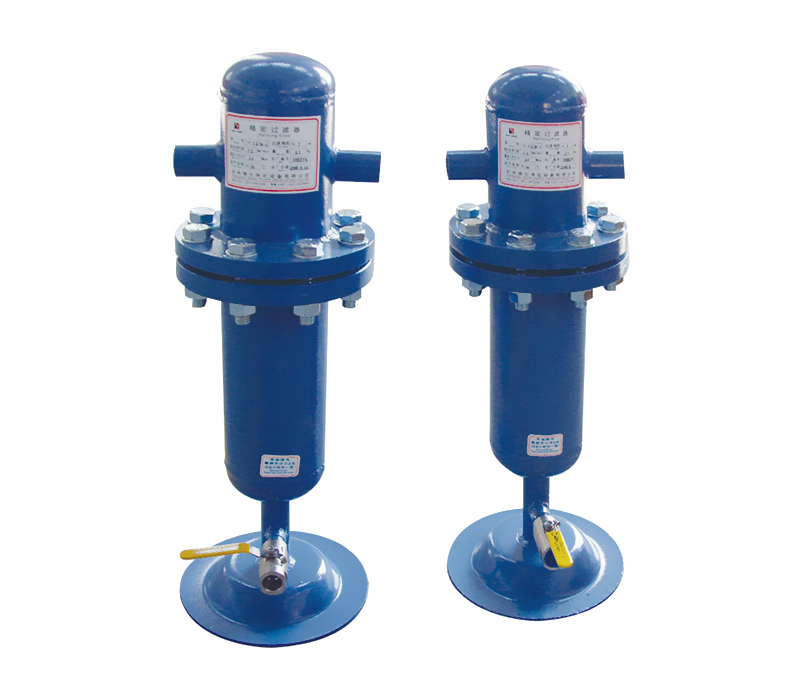

AUXILIARY	Precision air filters	M³/ Mpa	≥1.0 / 3.0 x 2set	≥1.0 / 3.0 x 2pcs
MAIN MACHINE ELECTRICITY	Power	KW	20	11
	Voltage / Frequency	V / Hz	220 / 380 / 50-60	220 / 380 / 50-60
	Power	KW	15	15
MACHINE SIZE AND WEIGHT	Blow units dimension (L X W X H)	M	1.82X0.82X2.2	1.82X0.82X2.2
	Blow units weight	T	1.1	1.1
	Pre-heater dimension (L X W X H)	M	2.1X 2 X 2	1.74 X0.66X1.65
	Pre-heater weight	T	0.4	0.4
SAFETY	Auto-emergency alarm	SAFETY INTER-LOCKING DEVICE
