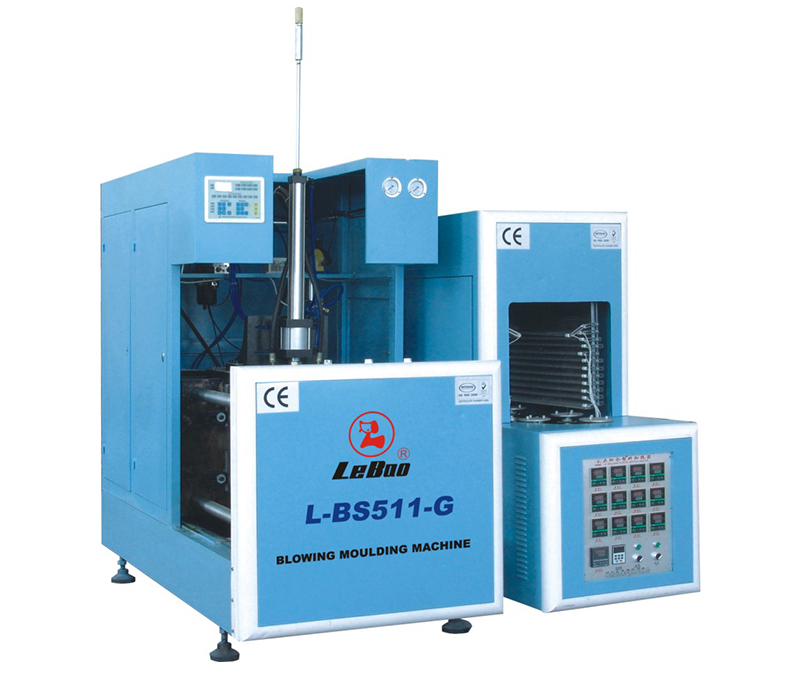

L-BS511-G Lampshade Blow Molding Machine

SYSTEM DESCRIPTION:

FEATURES:

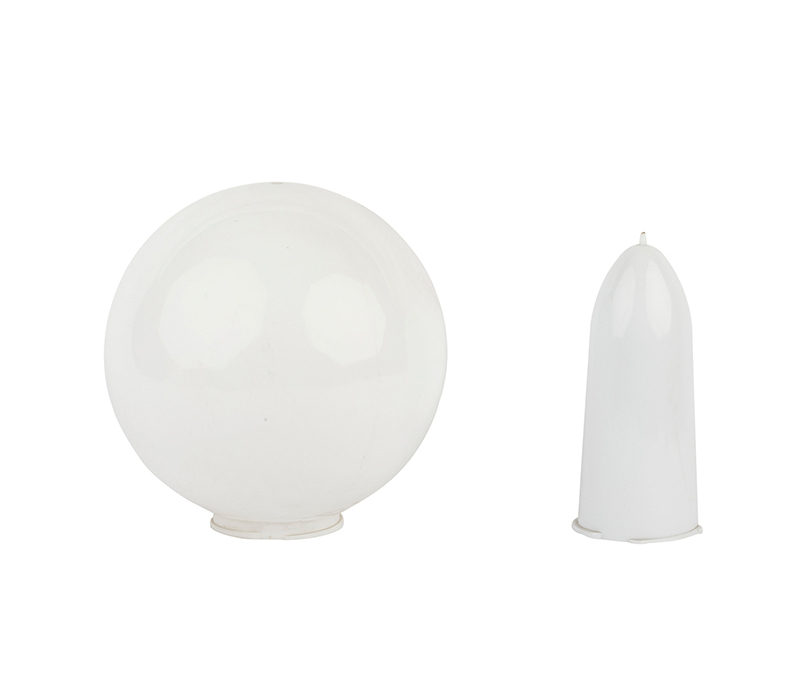

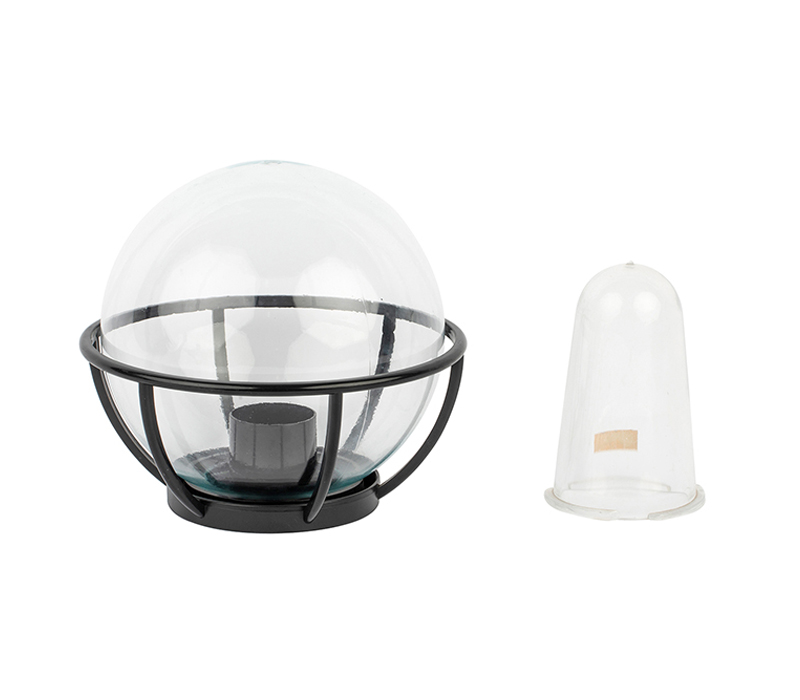

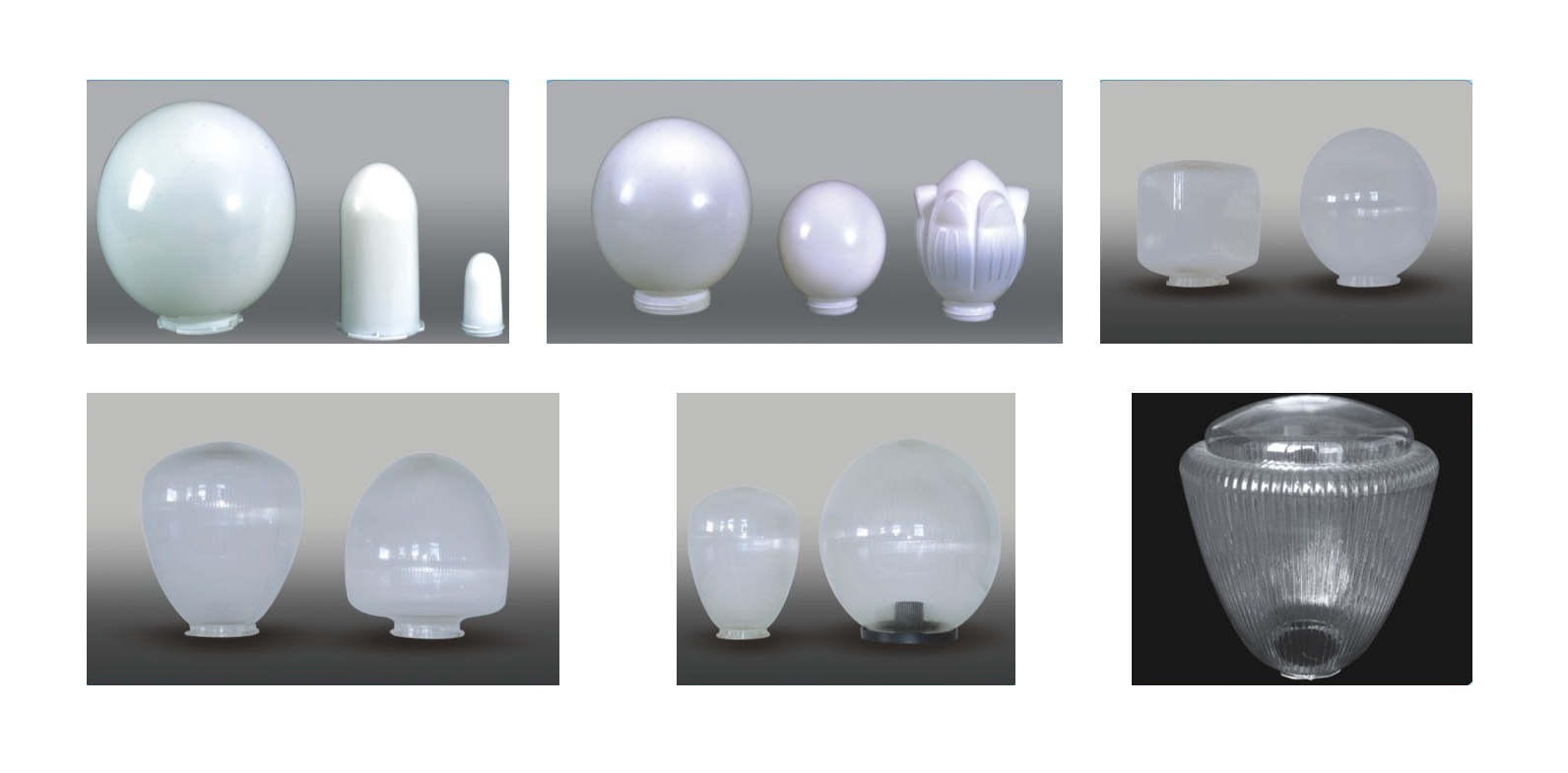

L-BS511-G Lampshade Blow Molding Machine, improved on the basis of L-BS511, isspecially designed for blowing PET/PMMA/PC globes for lighting.

Products Description Message

L-BS511-G (lampshade) type		Main Technical Data
Clamping force		Force of closing mould		220KN
Hourly production capacity		Productive capacity		100PCS
Maximum product capacity		Max volume of product		φ600
Host operating pressure		Working Air Pressur of Main frame		1.0Mpa
Blowing air pressure		Blowing Air Pressure		2.0-3.0Mpa
Operating Voltage		Voltage(3-phase1-phase)		380/240/110V
heating power		Heating power		50KW
Maximum stretching stroke		Max Stretch Length		550mm
Mobile template itinerary		Max mould thickness		480mm
Allowable mold thickness		Allowed Mould thickness		280-700mm
Allow mold width		Allowed Mould Width		700mm
Host size (length × width × height)		Size of Main frame (L.W.H)		2300 x 990 x 2300mm
Infrared heating box size		Size of Oven(L.W.H.)		2700 x 650 x 1660mm
Total Weight		Weight		1800+620KG
Auxiliary	High pressure compresso	M³ / Mpa	≥ 0.7 / 3.0 x 1set	Power	11KW
	Low pressure compressor	M³ / Mpa	≥ 1.0 / 1.0 x 1set	Power	7.5KW

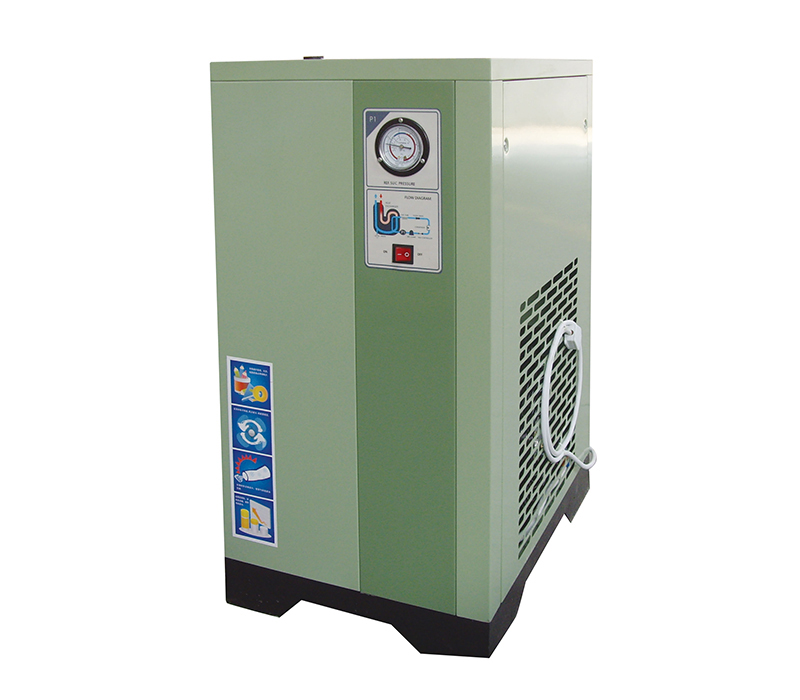

	Air cooling dryer	M³ / Mpa	≥ 1.0 / 3.0 x 1set	Power	1.5KW

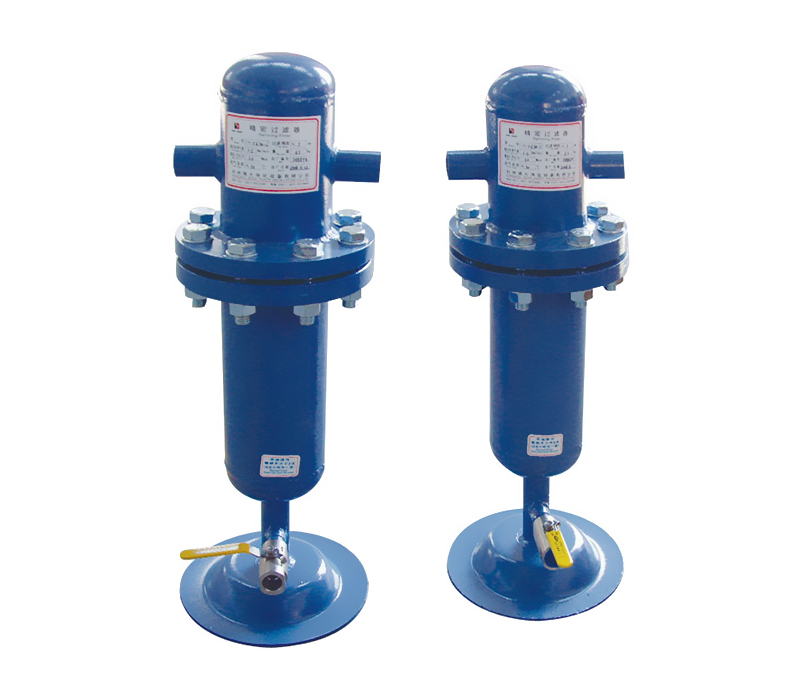

	Precision air filters	M³ / Mpa	≥ 1.0 / 3.0 x 2pcs
